Posi-STRUT Truss System
Support Detailing

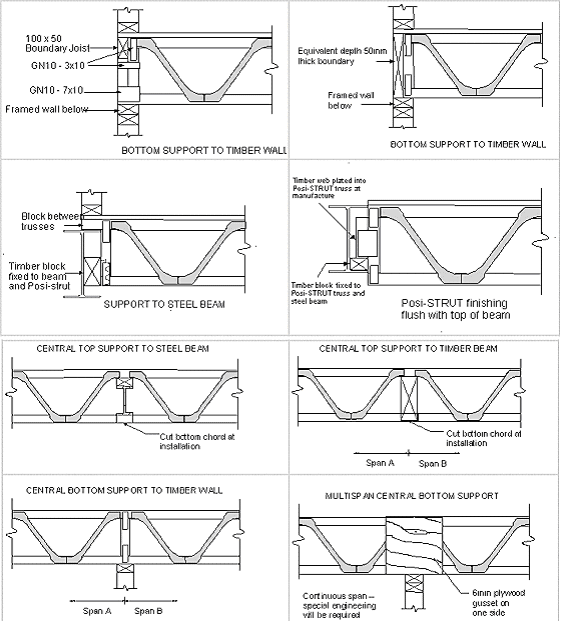

The Posi-STRUT web is always plated both sides at the top chord over support points whether they be at the ends of trusses or at intermediate locations, unless it is clearly specified otherwise. Various end and intermediate details are shown in ‘Rafter and Purlin Truss Detailing’ Section.

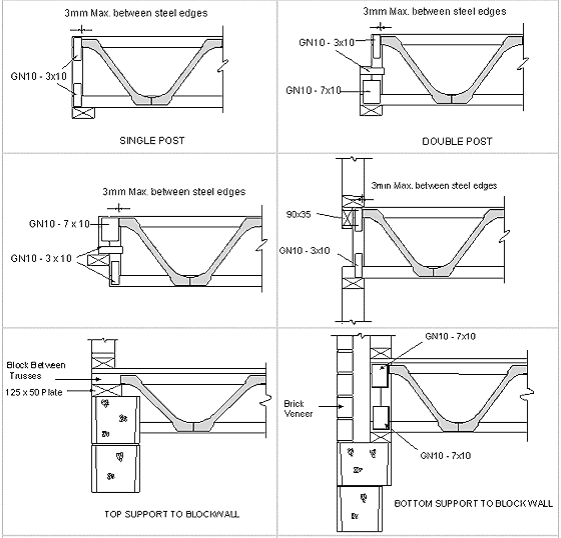

GANG-NAIL connectors for vertical timber webs are typically used as shown below
